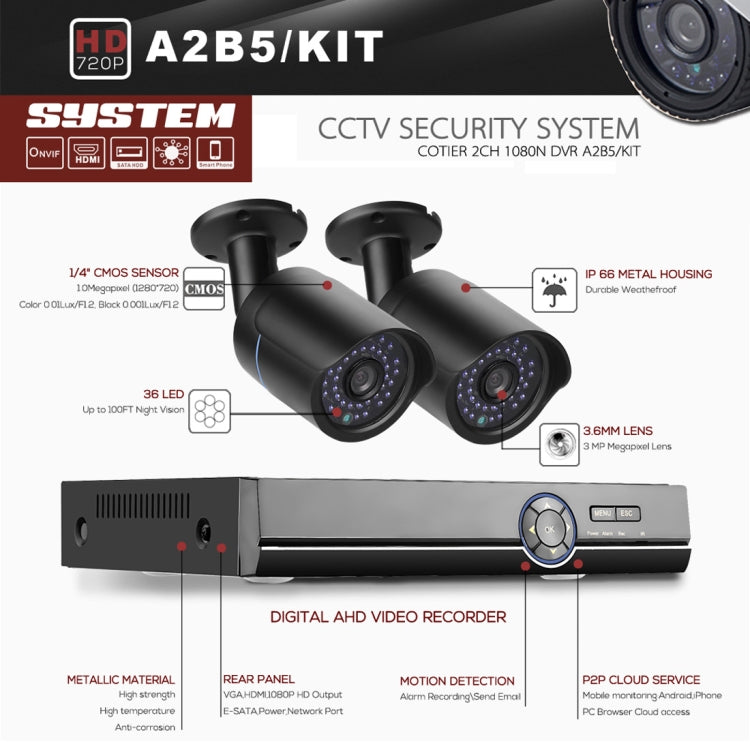

AHD Bullet Cameras Kit AHD DVRA4B5 4 Channel 720P 4 x C Night Vision Motion Detection

AHD Bullet Cameras Kit AHD DVRA4B5 4 Channel 720P 4 x C Night Vision Motion Detection

Alex Bazar Mx

Regular price $259.00 USD
Regular price Sale price $259.00 USD
Sale Sold out
Shipping calculated at checkout.

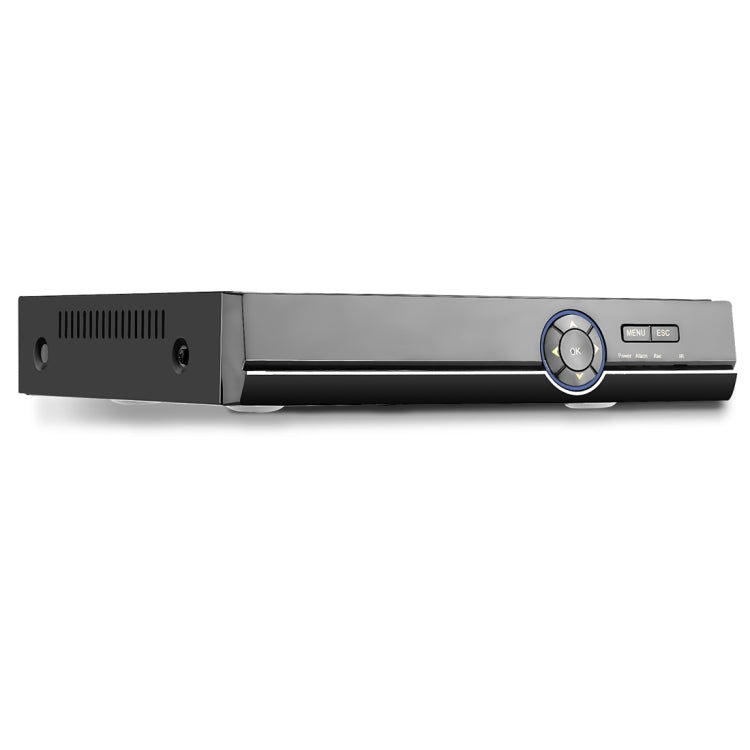

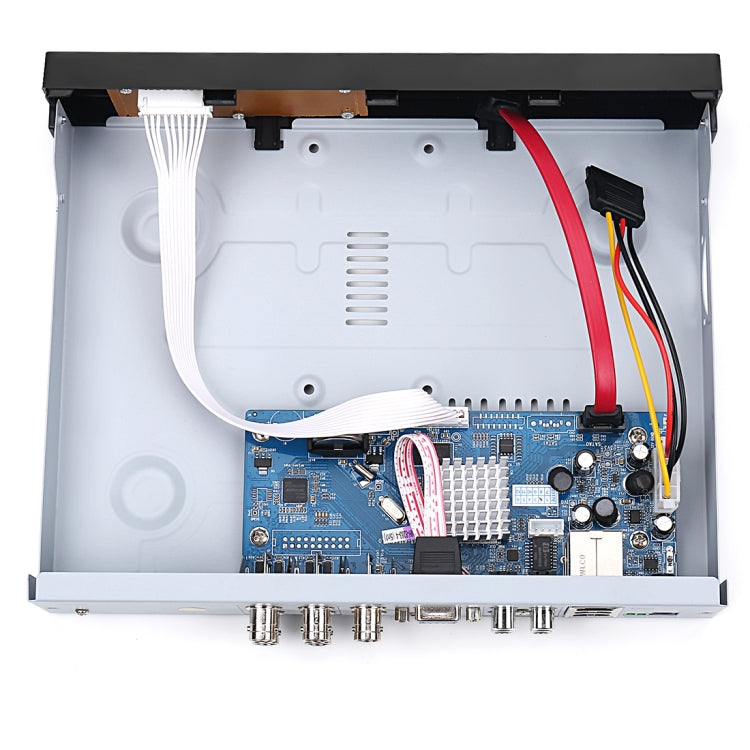

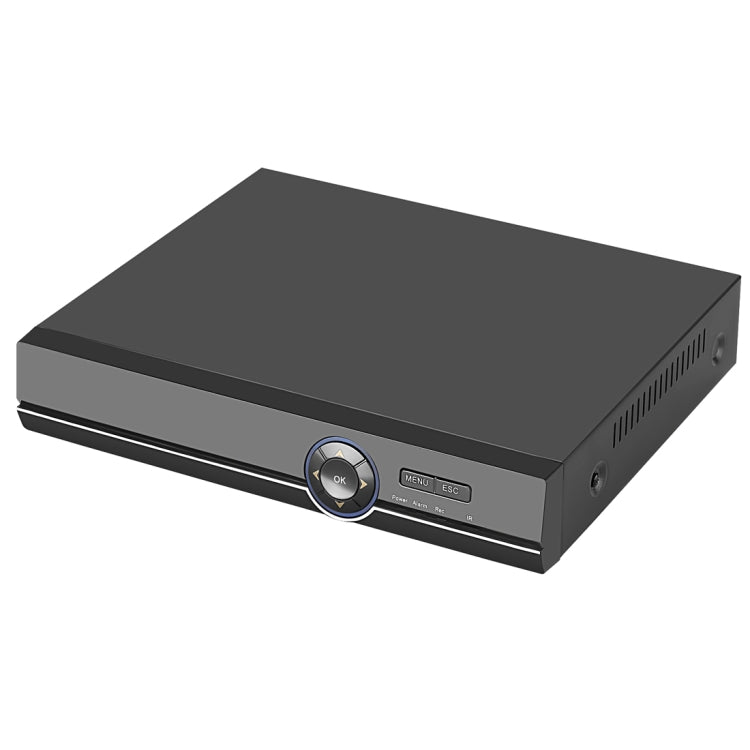

AHD DVR
1. Support 4CH 960P/720P 1HDD AHD DVR
2. Support 4pcs 1MP AHD cameras(36pcs 5mm IR LEDs, 20M IR distance).
3. Ideal compression algorithm: H.264 compression algorithm, 30% flow decrease due to advanced space-time filtering technology.
4. Playback quality: Support full real-time encoding video, multi-channel synchronous decoding full real-time playback.
5. Main and sub-stream: Main and sub-stream encoding. Main stream for local storage, ensuring image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
6. Display: VGA HD output simultaneously, support VGA 1080P HD output, lead the HD resolution technology.
7. Operation interface: similar to Windows operating style, easy to get started with powerful mouse right-click function.
8. Network: Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL, IP lookups, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability.
9. Browsers: Support IE, Chrome, Firefox, Safari browsers.
10. Remote Access: With DNS (ARSP), easy to monitor remotely, 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other DNS are also provided.
11. Step on the Internet: One step to remote monitoring, get rid of various complicated network settings, easy and simple to operate.
12. Mobile Monitor: Supports various mobile monitoring (iPhone, Windows Mobile, BlackBerry, Symbian, Android).
13. Differentiation: No home screen replacement, more than twenty languages, more than 10 sets of GUI interface, ten kinds of remote control, which make our products different from others.
14. Others: With unique black box technology, the entire process can be monitored, greatly reducing maintenance costs.

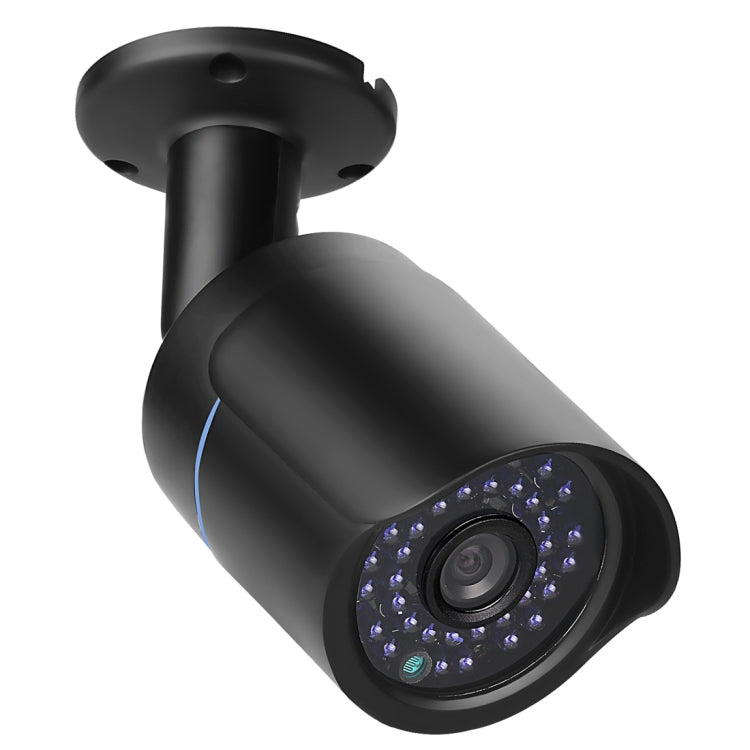

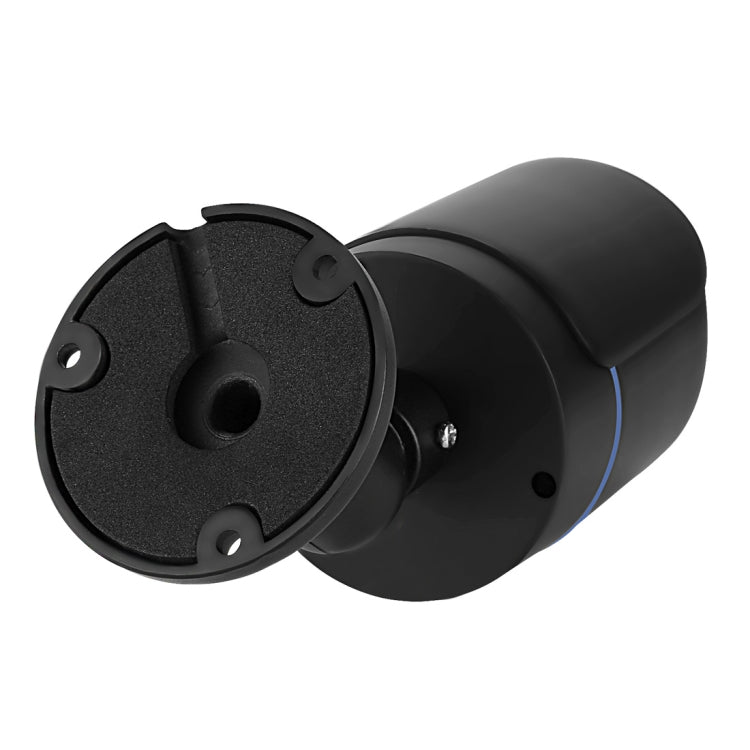

AHD camera
1. Wide power supply design, can work in a wide voltage range.
2. Environmentally friendly products, low current, low power consumption, energy saving.
3. Video lightning, anti-static dry flexible circuit design: effective against external high voltage lightning, surges and static electricity.
4. Each product goes through a rigorous aging test. International brands of materials, creating product consistency and stability.
5. 1/4 inch 1.0 megapixel CMOS sensor lens (1280*800).
6. High-speed and long-distance real-time transmission.
7. Max IR LED length 20m, Smart IR.
Specification:
General
Model A4B5
Shape Bullet
Installation type Wall bracket, Ceiling Bracket
Loss of power 3W
Power supply DC 12V 1.0A
Performance Motion detection, Night Vision
System / Hardware
Image sensor CMOS
Sensor size 1/4 inch Progressive Scan
Pixels 1.0MP

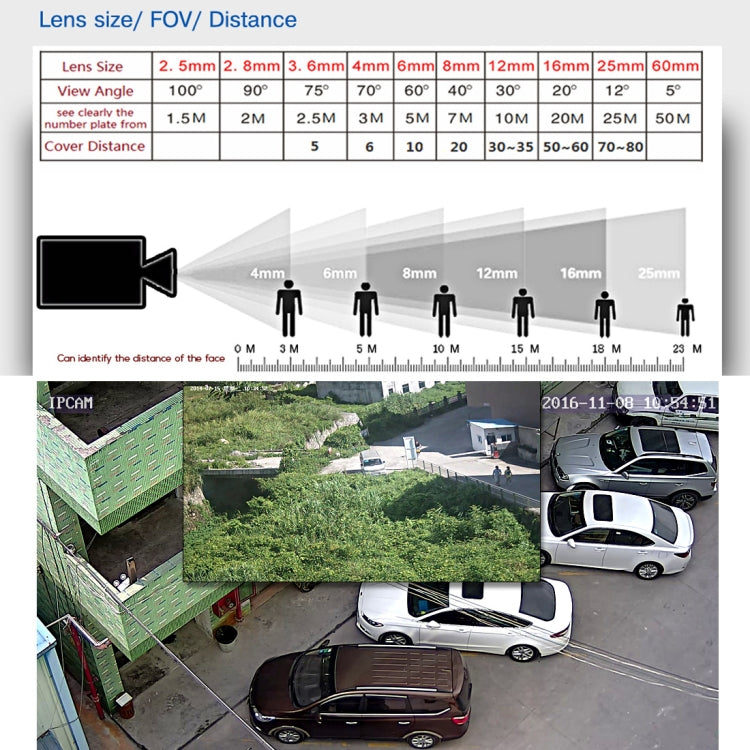

Glasses 3.6mm
Electronic shutter 1/50s~1/100,000s
S/N ratio >=50dB
Day/Night - IR-CUT Auto(ICR) / Color / B/W
Minimum lighting 0.1Lux@F1.2 (AGC ON), 0.01Lux (IR on)
White balance Car
Automatic image control AWB
Media form
Compressed form H.264
Form of audio compression G711-A
Frame rate (FPS) 30 fps NTSC, 25 fps PAL
Night vision
Infrared distance 20m
Infrared LED radiation 36 pcs 5mm IR LEDs
NVR parameters
Recording Recording mode: Manual recording, motion detection recording, time recording, alarm recording

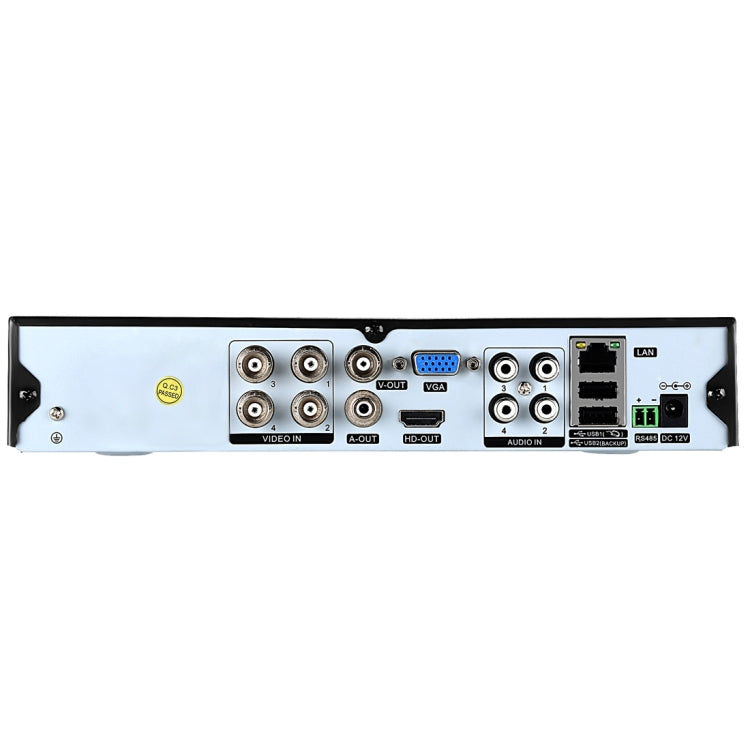

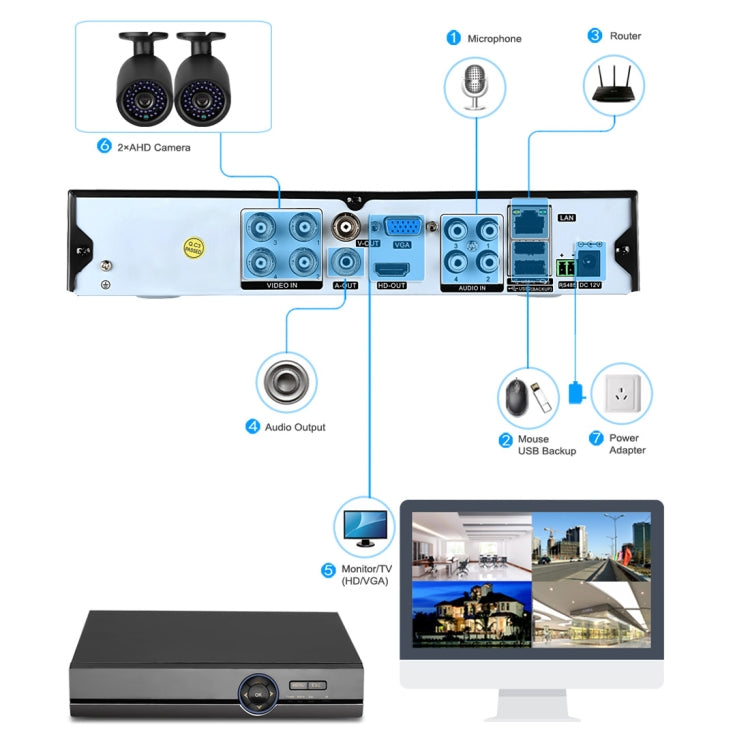

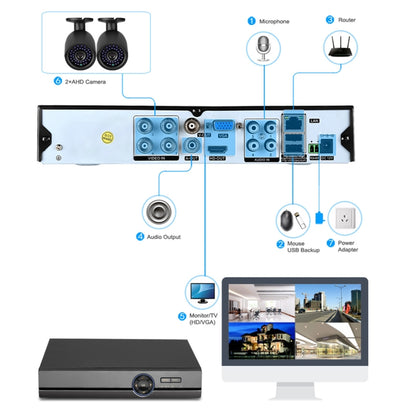

Video input 4ch
Video Interface BNC Port
Audio interface 4 x RCA input, 1 x output
HDMI Output Resolution 1920x1080

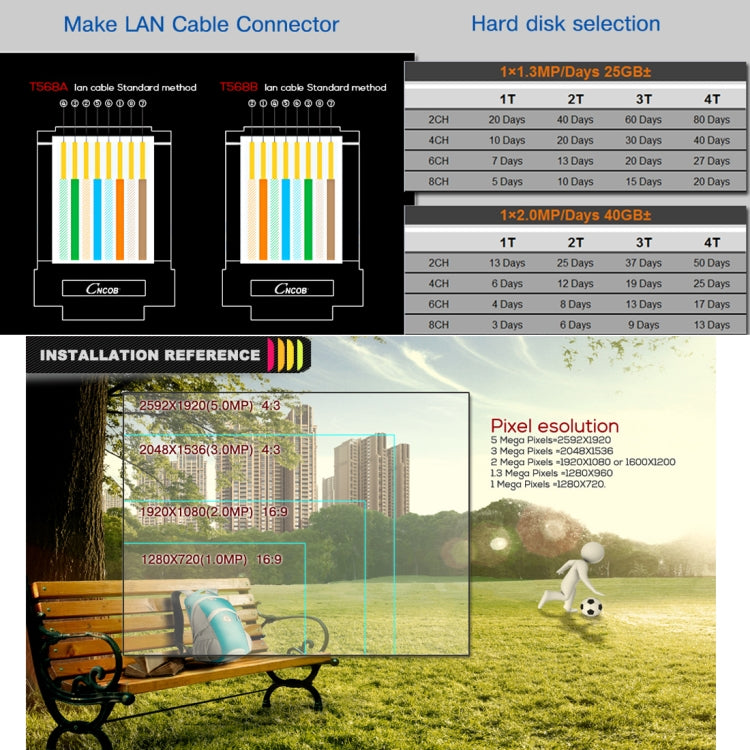

Grid LAN (Network 1*RJ45 10/100 Base-T)
USB ports 2 x V2.0
Wireless port 3G, WiFi

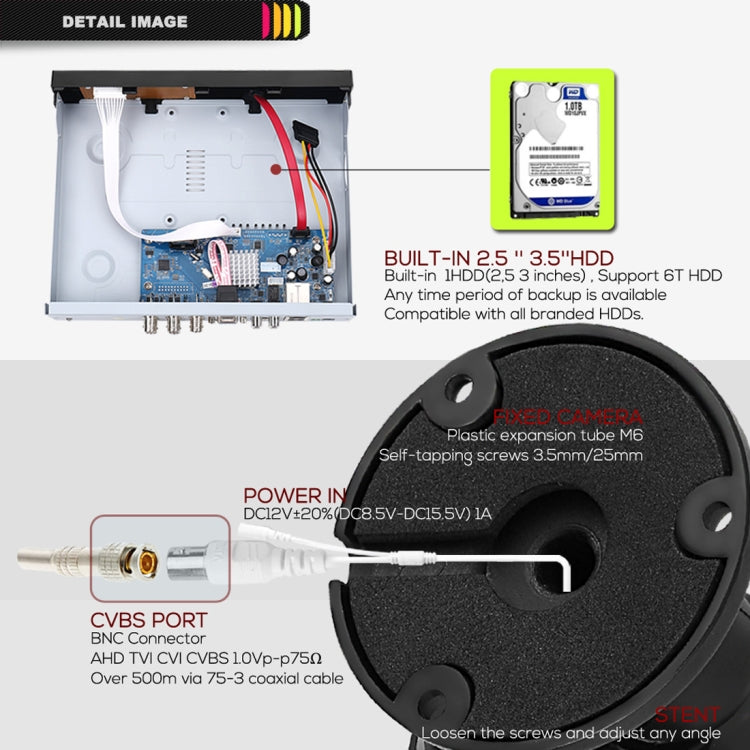

HDD 2 SATA HDDs (not included), Max 6TB / PER
Energy DC 12V 2.0A
Physical Environment
Environment Outdoor, Indoor
Income protection IP66
List content

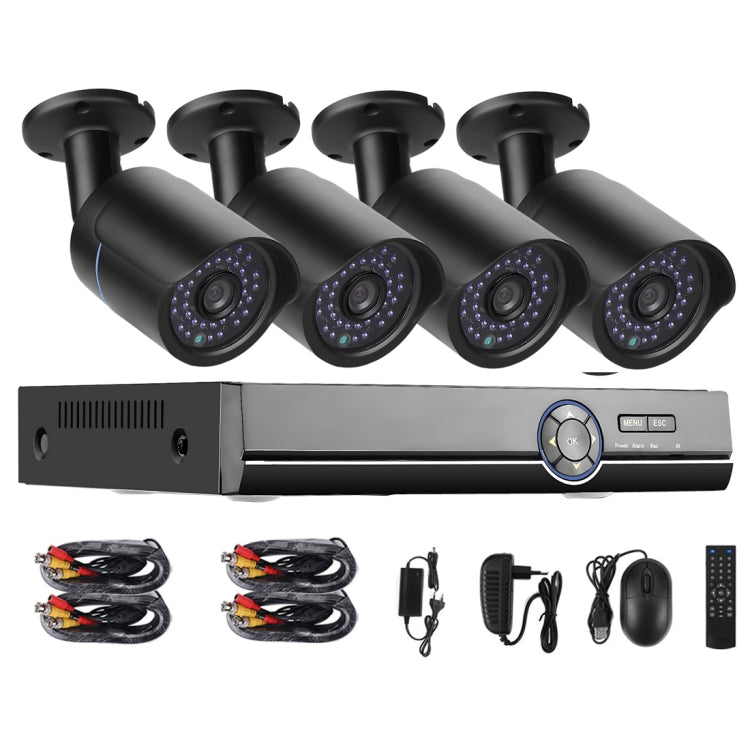

Package contents 4 x Cameras

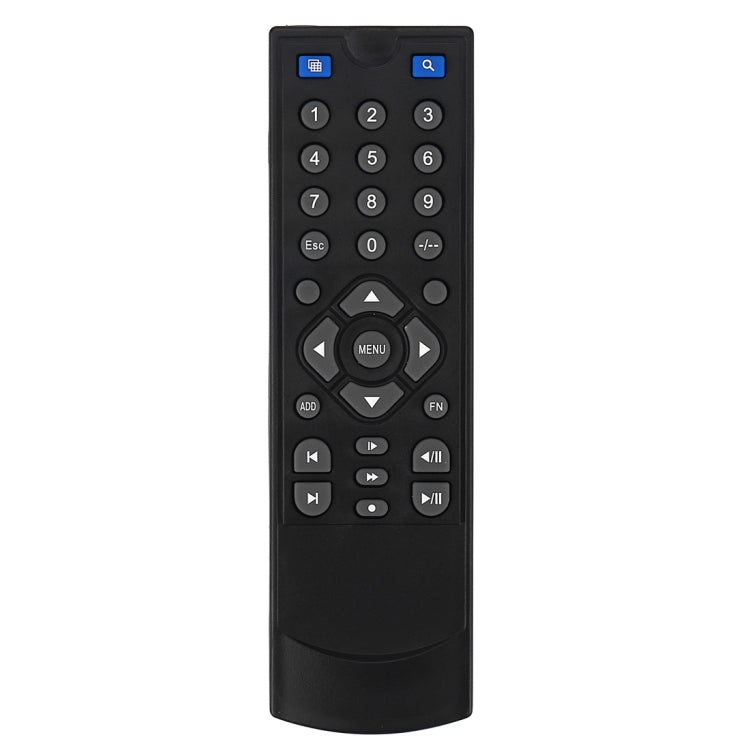

1 x Remote Controller
4 x Connecting Cable
1 x USB Mouse
1 x CD
1 x User Manual
1 x DVR
1 x Mouse

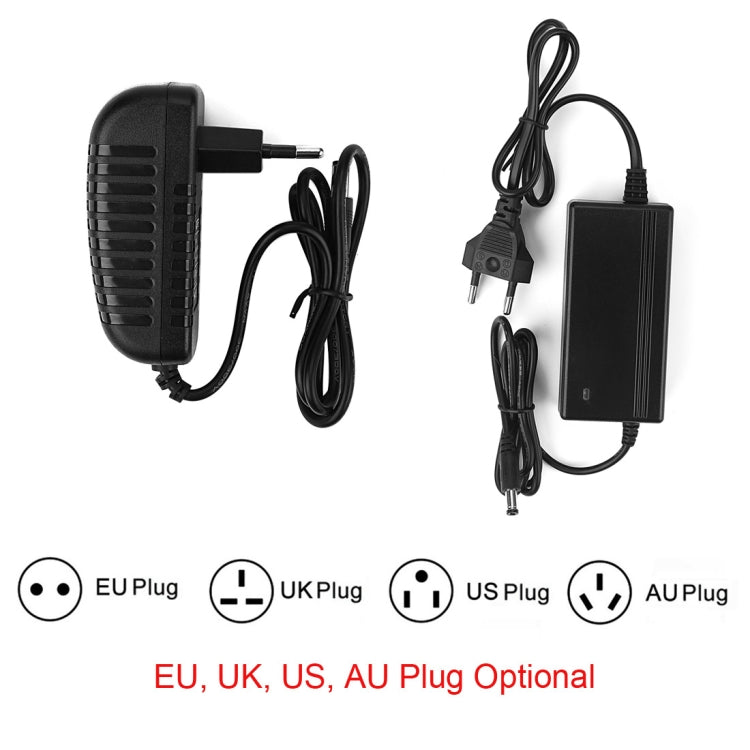

2 x Power Adapter (US, UK, EU, AU Optional)
Package weight
Weight of a package 4.20kgs / 9.26lb
Single product size 29cm*23cm*24cm/11.42inch*9.06inch*9.45inch
Quantity per carton 4
Cardboard weight 18.00kgs / 39.68lb
Cardboard size 31cm*28cm*50cm/12.2inch*11.02inch*19.69inch
Cargo container 20GP: 614 cartons * 4 pieces = 2456 pieces
40HQ: 1426 cartons * 4 pieces = 5704 pieces
