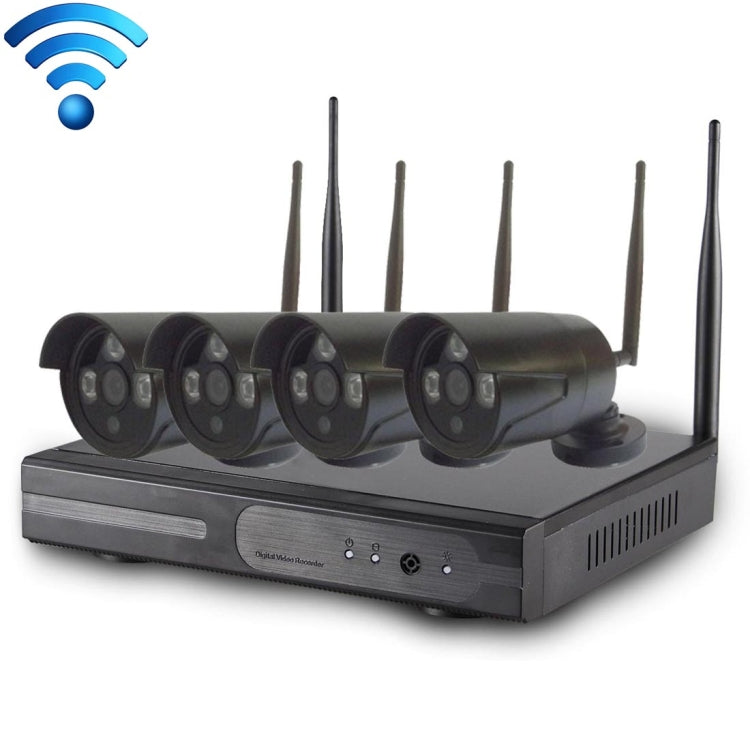

Functions 1. H.264 Wireless Network Hard Disk DVR, 4 Channel 960P/720P/960H/D1.
2. Built-in high-performance stability wireless Wi-Fi router module, support 802.11b/g/n protocol, 150Mbps.
3. Automatically access the Wi-Fi network camera via the network cable.
4. Video preview/video playback/backup.
5. Ease of use (easy wireless pairing, setup wizard, common functions menu, easy to view network).
6. Supports N1, IPC access protocol.
7. Supported network service functions: P2P, DHCP, DDNS, PPPoE, Email, FTP, etc.
8. Support a variety of alarm triggers (video loss/motion detection, etc.) and alarm output (sound/email/FTP, etc.).
9. Supports remote access and control (LAN and Internet) of Android/Apple mobile phones (or tablets).
10. Supports remote PC access and control (client or browser) (local area network and Internet).
11. Support IPC settings (encoding control, image adjustment, OSD display, etc.).
12. Supports video motion detection with IPC.
13. Support video cover function with IPC.
14. Support user rights management.

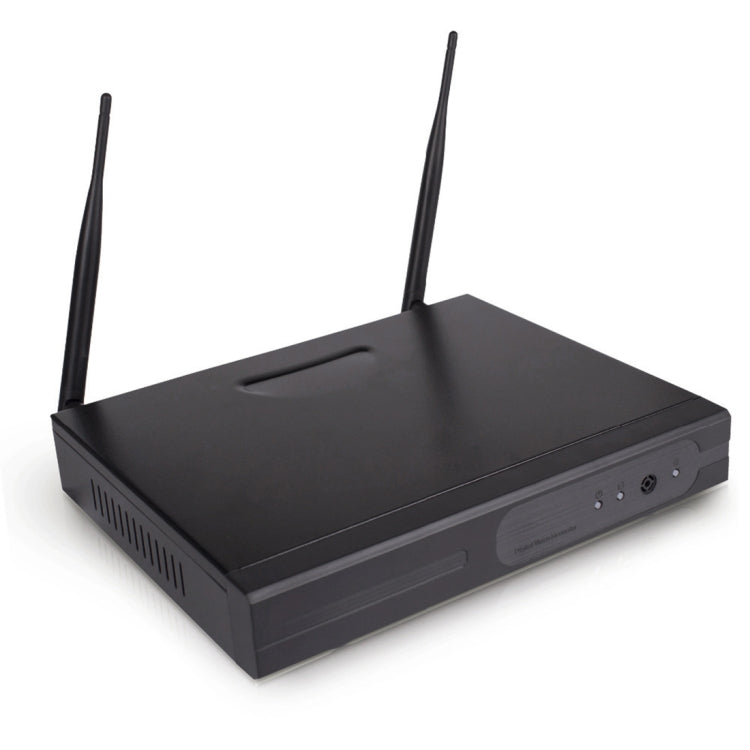

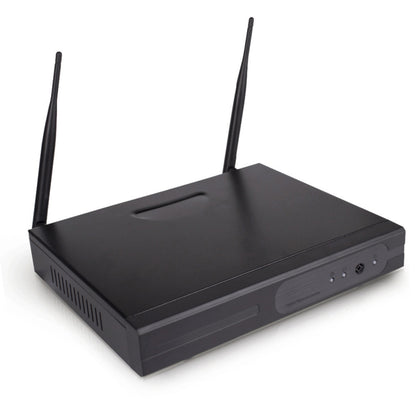

NVR 1. Professional industrial processor.
2. Embedded Linux operating system.
3. 4-channel network video input, 20Mbps network video access bandwidth.
4. HDMI Output: 1 Channel, Resolution: 1024x768, 1366x768, 1440x900, 1920x1080p.
5. VGA Output: 1 Channel, Resolution: 1024x768, 1366x768, 1440x900, 1920x1080p.
6. Record video resolution: D1/960H/720P/960P.
7. Synchronized playback: 4 channels.
8. Video/Capture Mode: Maual, Time, Motion, Alarm.
9. Playback mode: real-time, routine, event.
IP camera 1. 1/4 inch progressive scan sensor, 1280*720 resolution.
2. Regional Privacy Shelter: 4 selectable zones.
3. Transmission: two transmissions at the same time:
- H.264 1280x720 @ 15fps or less.
- H.264 640x360 @ 15fps or less.
Specification:
| General |
| Loss of power |
<6W(Camera) |
| Performance |
Motion detection, Night Vision, Privacy Masking |
|
| Grid |
| Network interface |
RJ45 10/100MB Ethernet interface |
| Wireless |
WiFi 802.11 b/g/n |
| Protocol |
SMTP, UPNP, DHCP, PPPOE |
|
| System / Hardware |
| Sensor size |
1/4 inch Progressive Scan |
| Day/Night - IR-CUT |
Auto / Color / BW |
| Minimum lighting |
B/W: 0.01Lux, Color: 0. 1Lux |
|

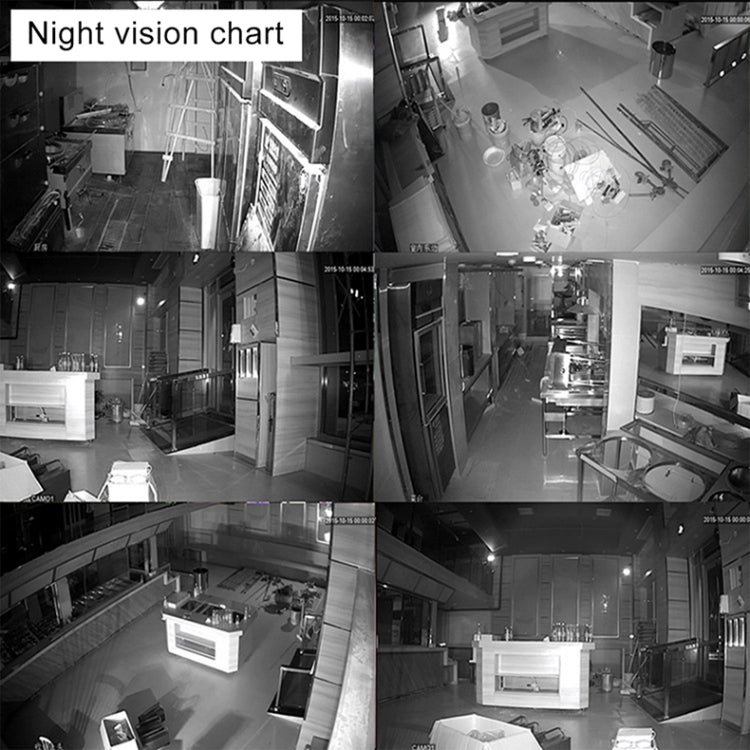

| Night vision |
| Infrared LED radiation |
3PCS |
|
| NVR parameters |
| System |
Operating system: Embedded LINUX OS |
| Recording |
Playback mode: Instant playback, regular playback, event playback
Backup mode: Regular backup |
| NVR Interface |
1 x VGA, 1 x HDMI, 1 x RJ45, 2 x USB 2.0 |
| Video input |
4ch, D1, 960H, 720P, 960P |
| Video Interface |
Network video Input: 4ch, Video output: 1ch VGA and 1ch HDMI |
| HDMI Output Resolution |
1024x768, 1366x768, 1440x900, 1920x1080 |
| HDD |
SATA HDD (not included), Max 4TB |
| Operating temperature |
-10 to 55 Degree Celsius |
| Operating humidity |
10-90 percent |
| VGA output resolution |
1024x768, 1366x768, 1440x900, 1920x1080 |
|
| Physical Environment |
| Operating temperature |
-10 to 50 Degree Celsius |
|
| Dimensions |
| Size |
205*70*55mm(camera); 257*210*45mm (NVR) |
| Weight |
500g (Camera); 1kg (NVR) |
|
| List content |

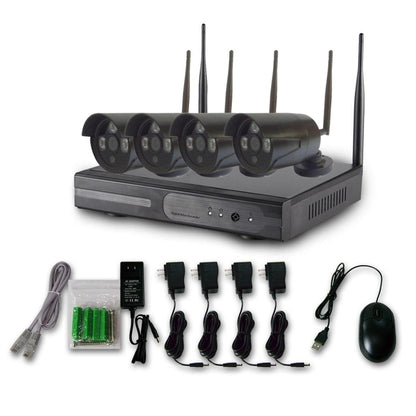

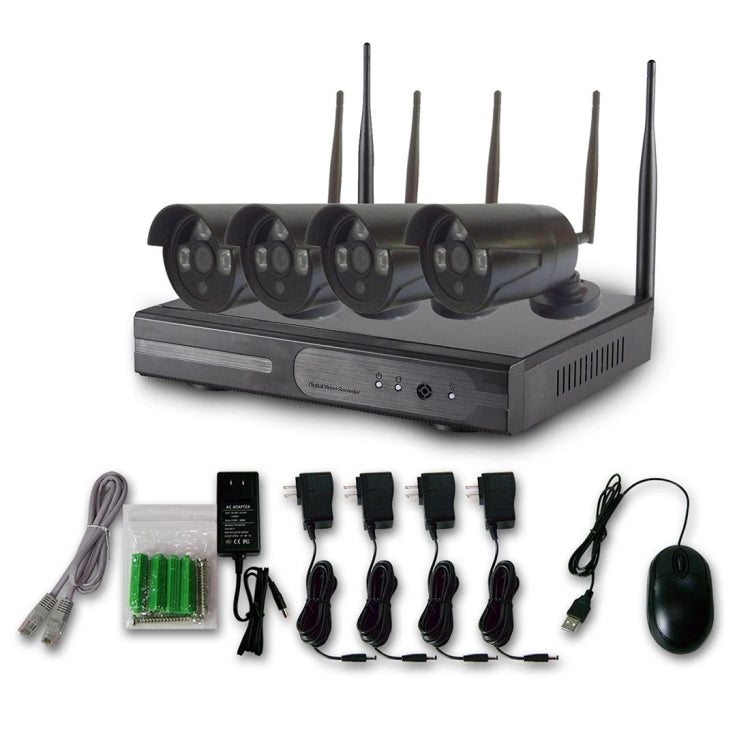

| Package contents |
4 x Cameras
1 x Mounting Accessories
1 x USB Mouse
1 x NVR
1 x Network Cable
5 x Power Adapter (US, UK, EU, AU Optional) |
|
| Package weight |
| Weight of a package |
4.70kgs / 10.36lb |
| Single product size |
32cm*36cm*26cm/12.6inch*14.17inch*10.24inch |
| Cardboard weight |
16.50kgs / 36.38lb |
| Cardboard size |
52cm*38cm*52cm/20.47inch*14.96inch*20.47inch |
| Cargo container |
20GP: 259 cartons * 4 pieces = 1036 pieces
40HQ: 602 cartons * 4 pieces = 2408 pieces
|
|
